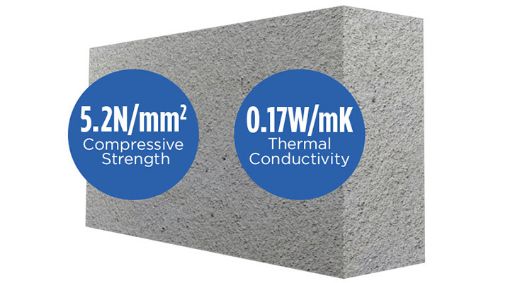

MannokLite 100mm B5 Standard Insulation Block (Standard Equiv) QLB5001 (72 - Blue Band)

MANNOK AIRCRETE STANDARD BLOCKS

Mannok Aircrete Standard block combines optimum levels of thermal performance, strength and density to make it suitable for almost all on site applications, including party wall construction.

*Mannok Aircrete Standard (previously Quinn Lite Standard)

Performance & Properties:

• Gross Dry Density (Kg/m3): 650
• Mean Compressive Strength (N/mm2): 5.2
• Thermal Conductivity (W/mK): 0.17
• Dimensional Tolerance in GPLM: D1
• Dimensional stability/moisture movement (mm/m): <0.4

Fire Resistance

Mannok thermal blocks provide excellent fire protection in both load bearing and non load bearing applications. They are classed as non combustible and have a Class 0 resistance to surface spread of flame and category A1 in accordance with BS EN 13501-1. Block thicknesses required for fire resistance periods are shown in the table below.
