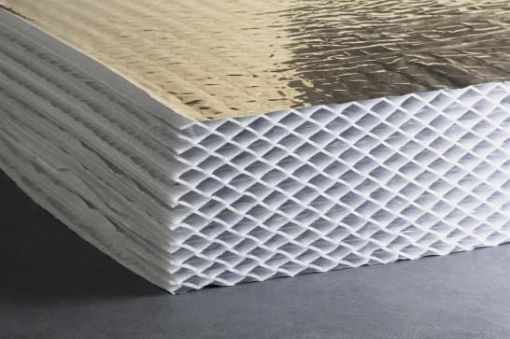

Actis Hybris Panels 1200mm x 1145mm

Introducing Actis Hybris, an advanced insulation technology designed to enhance the thermal efficiency of timber frame or masonry walls, pitched roofs, and ceilings. Actis Hybris is engineered with numerous low-emissivity internal cavities that provide superior thermal performance, complemented by low-emissivity external films for additional thermal resistance. This versatile insulation is ideal for a variety of applications across roofs, walls, and ceilings. It offers a low thermal conductivity (λD) of 0.032 W/m·K and a core thermal resistance (RD) ranging from 0.90 to 9.05 m²·K/W, allowing for tailored thermal solutions. Available in thicknesses from 30 to 300mm, Actis Hybris ensures flexibility and performance. It is both airtight and watertight, boasting a W1 watertightness rating, providing robust protection against the elements. Choose Actis Hybris for an insulation option that merges exceptional thermal properties with environmental sustainability, enhancing comfort and energy efficiency in your living spaces.

Key Features:

• Thermal conductivity (λD): 0.032 W/m·K
• Core thermal resistance (RD): 0.90 to 9.05 m²·K/W
• Additional thermal resistance with 2 air voids: 2.15 to 10.60 m²·K/W
• Thickness range: 30 to 300mm
• Watertightness: W1 rating

Benefits:

• Exceptional thermal performance due to multiple low-emissivity internal cavities
• Enhanced thermal resistance from external low-emissivity films

Applications:

• Versatile, reflective insulation material suitable for roofs, walls, and ceilings

Technical characteristics:

• Z-value > 550 MNs/g
• Core R-value ranges from 0.9 to 9.05
• R-value with 2 air voids as per EN 16012: from 2.15 to 10.60
• Emissivity values: 0.05 / 0.10
• Airtight and watertight properties
